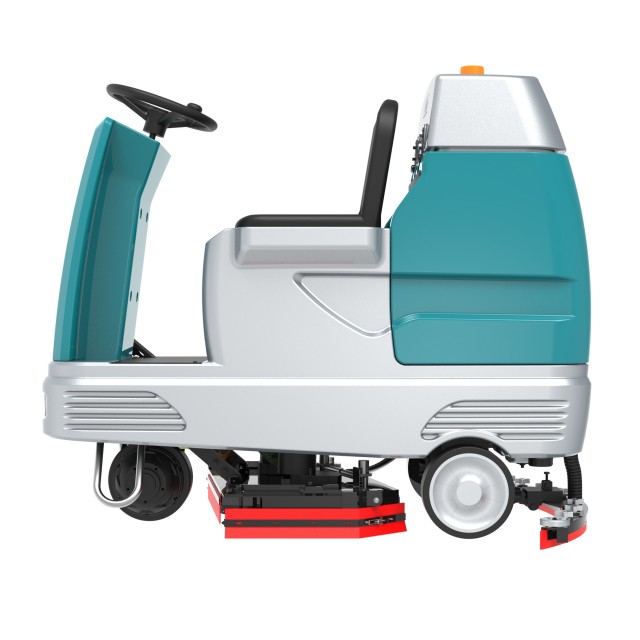

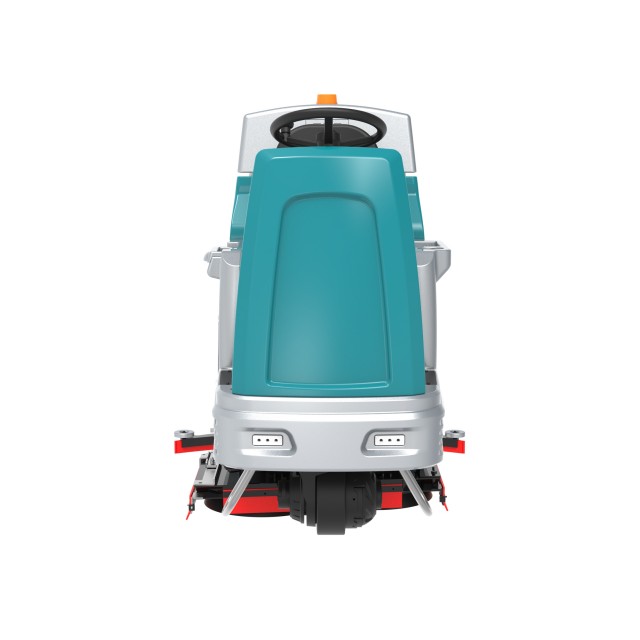

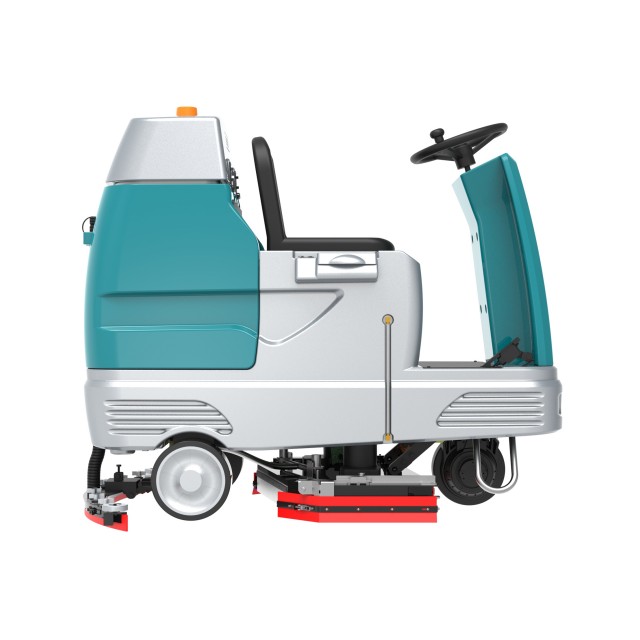

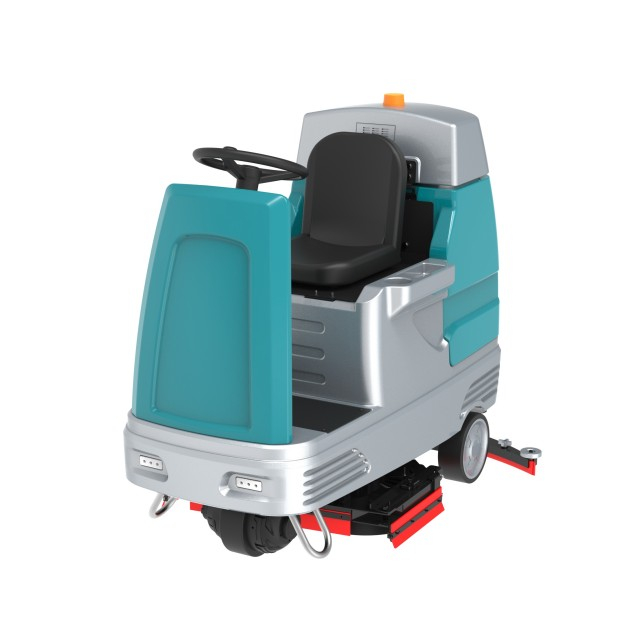

X10 Multiple Filtration System Ride-on Floor Scrubber

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Dual vacuum motors can be customized for this machine
  • X10

  • GIYO

Availability:

X10 floor scrubber adopts front-wheel drive design, flexible steering, energy saving and high efficiency. The two-speed adjustment design that makes driving safer and easier. It combines a three-in-one function of scrubbing floor, washing floor and suck dry. The battery assembly adopts intelligent charging design that automatically runs the protection program after full charge, which ensures the safety of charging. The machine has multiple advantages such as low noise, stable performance, one-button operation, large water tank and efficient cleaning. This floor scrubber has multiple filter device as well that allows dust particles from floor can be sucked into the recovery tank directly, extremely clean effect after cleaning.



Our advantages:

1. AMETEK brand silent Fan, quiet but extraordinary, strong vacuum power, low noise while  high work efficiency

2. High power drive motor, easy to solve the problem of climbing in underground garage

3. Adaptive squeegee and brush disc, the height can be automatically adjusted as the ground rises

4. Made by polyethylene process, the floor scrubber housing is strong and durable, resistant to acid and alkali corrosion

5. Large capacity water tank, long-lasting working, no need to fill water frequently, saving time and effort

6. Float induction device, when the water level in recovery tank reaches a certain height, the float induction device will automatically cut off the power supply of the vacuum fan.

7. The brush disc assembly is available with magnetic brush disc or snap-on brush disc, easy to replace the brush disc, and works stably when brushing the ground.

8. Adopts cast aluminum brush disc cover, strong and durable, low maintenance costs

9. Electrophoresis process, adopts automotive electrophoretic coating process, wading parts will not rust after prolonged use.

10. Mulriple recovery tank filtration system to protect the vacuum fan more effectively, which prolong the life.



Features:

1. Without tools, the suction hose is easier to plug and unplug, and convenient for maintenance and replacement.

2. Two vacuum fans are optionally available, double the suction power.

3. Double brush disc design, two-way water outlet, dust gathering effect is better, cleaning range is wider

4. The vacuum fan is mounted on top, the space layout is more reasonable which protect the vacuum fan from the risk of water ingress effectively

5. High temperature protection, automatic power off to prevent the motor from burning when the motor temperature is too high

6. Maintenance-free battery, high-capacity, long battery life, no pollution, safe and reliable

7. Filling water filter, prevent foreign objects from being poured during water filling

8. Front LED light, with 18W low power consumption vehicle running light, can work smoothly in dim environments

9. The driver's seat is ergonomic and does not cause fatigue after a long work.

10. Side splash-proof rubber, brand rubber plus splash-proof brush to effectively prevent dirty water splashing

11. Collision wheels, can work smoothly in tight spaces, avoid scratching the wall, and pass side obstacles without collision

12. Anti-skid tires, stable and durable, can turn flexibly and brake in time on wet floor

13. Visual clear water tube, observe the water volume in tank at a glance from outside

14. Battery components are available with lead-acid batteries or lithium batteries

15. Drive motor is available with AMER brand motor



cleaning path

MM

960

Squeegee width

MM

1200

brush diameter

MM

480*2

dimension

MM

L1633*W869*H1387

solution /recovery tank

L

155/170

Drive motor

W

850W

vacuum motor

W

554

brush motor

W

550*2

Disk brush speed

RPM

180

Disk brush pressure

Mpa

4.3

working speed

km/h

0-9

grade ability

%

25

productivity

㎡/h

4500

Working hours

h

4-6

battery

V/Ah

24V220AH

Self weight

KG

435
