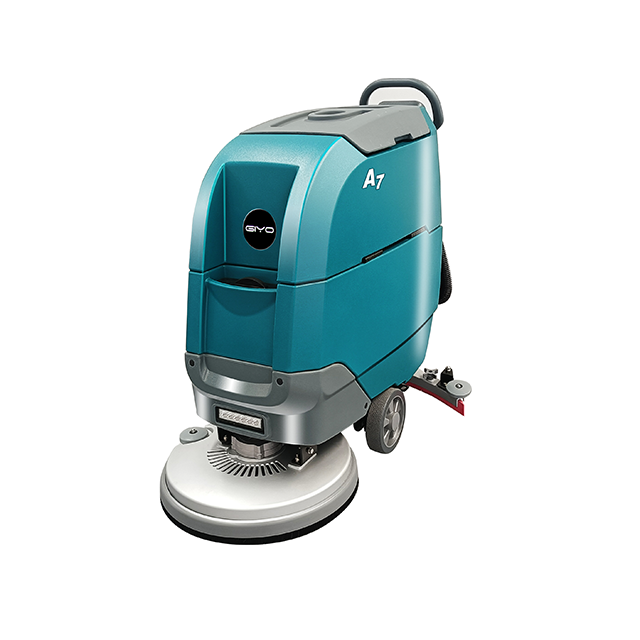

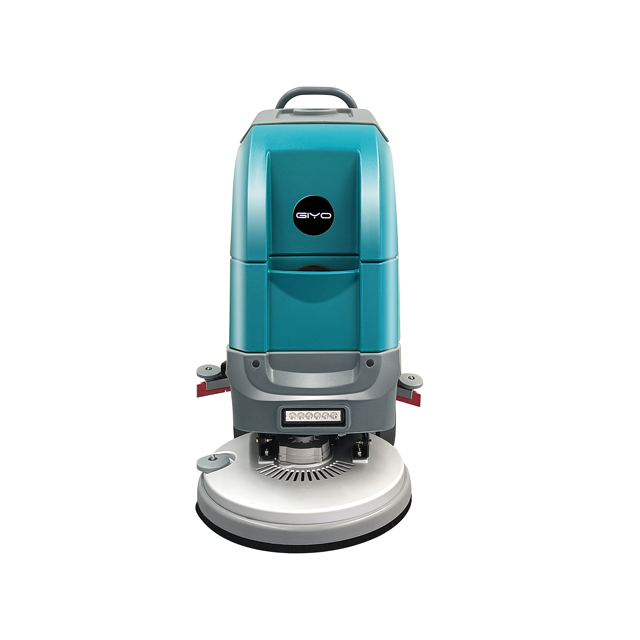

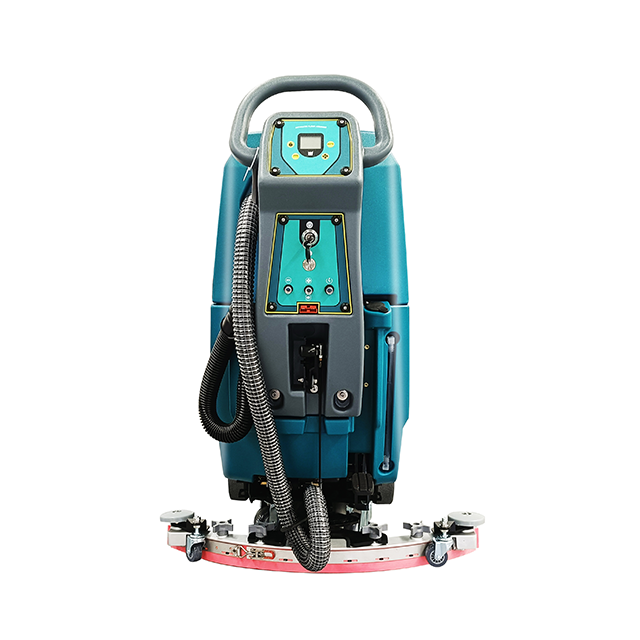

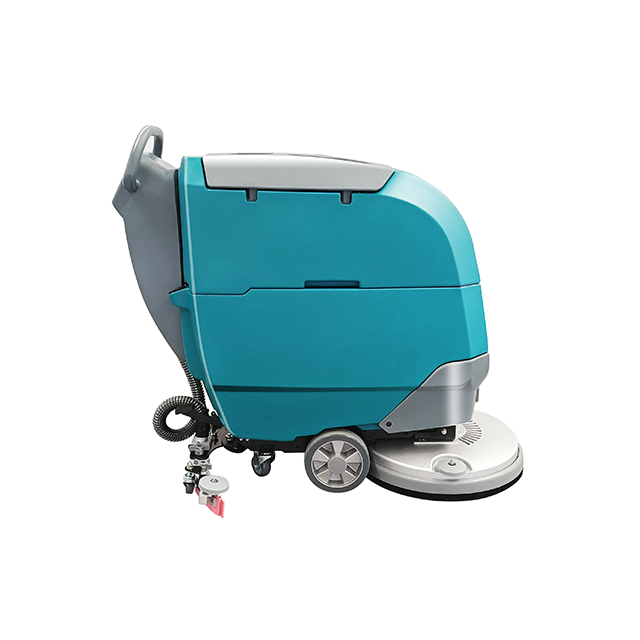

Silent Fan Non Drive Motor Version Walk-behind Floor Scrubber with LED light

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The drive motor can be customized for walk-behind scrubbers
  • A7

  • GIYO

Availability:

A7 floor scrubber uses hand push as motive power. The battery assembly adopts intelligent charging design which can automatically run the overcharge protection program when full charge. This floor scrubber is low noise, stable performance and efficient cleaning. The work efficiency can reach to clean 2500 square meters per hour. The compact body comes with a large water tank, which solves the problem of frequent water filling of small floor scrubbers. The machine combines a three-in-one function of scrubbing floor, washing floor and suck dry, and has multiple filter device that allows dust particles from floor can be sucked into the recovery tank directly, extremely clean effect after cleaning.



Our advantages:

1. Silent Fan, quiet but extraordinary, strong vacuum power, low noise while high work efficiency

2. High power drive motor, strong power and climbing ability

3. Adaptive squeegee and brush disc, the height can be automatically adjusted as the ground rises

4. Made by polyethylene process, the floor scrubber housing is strong and durable, resistant to acid and alkali corrosion

5. Large capacity water tank, long-lasting working, no need to fill water frequently, saving time and effort

6. Float induction device, when the water level in recovery tank reaches a certain height, the float induction device will automatically cut off the power supply of the vacuum fan.

7. The brush disc assembly is available with magnetic brush disc or snap-on brush disc, easy to replace the brush disc, and works stably when brushing the ground.

8. Adopts cast aluminum brush disc cover, strong and durable, low maintenance costs

9. Electrophoresis process, adopts automotive electrophoretic coating process, wading parts will not rust after prolonged use

10. Vacuum fan overflow valve, the multiple protection devices to eliminate the risk of waste water sucking into fan



Features:

1. High temperature protection, automatic power off to prevent the motor from burning when the motor temperature is too high

2. Maintenance-free battery, high-capacity, long battery life, no pollution, safe and reliable

3. Filling water filter, prevent foreign objects from being poured during water filling

4. Front LED light, with 18W low power consumption vehicle running light, can work smoothly in dim environments

5. Side splash-proof rubber, brand rubber plus splash-proof brush to effectively prevent dirty water splashing

6. Collision wheels, can work smoothly in tight spaces, avoid scratching the wall, and pass side obstacles without collision

7. Anti-skid tires, stable and durable, can turn flexibly and brake in time on wet floor

8. Visual clear water tube, observe the water volume in tank at a glance from outside

9. Battery components are available with lead-acid batteries or lithium batteries


Cleaning path

MM

790

Squeegee width

MM

790

Brush plate diameter

MM

530

Dimension

MM

L1270*W550*H1090

Solution/recovery tank

L

60/65

Vacuum motor

W

500

Brush motor

W

550

Work noise

DBA

60

Brush plate speed

RPM

180

Brush plate pressure

Mpa

2

Productivity

㎡/h

2500

Working hours

h

4-5

Lead-acid battery capacity

V/Ah

12V*2 107Ah

Charger model (European standard)

V/Ah

24V/15Ah

Total weight

KG

154

Optional lithium battery

V/Ah

24V100Ah

Optional Lithium battery charger

V/Ah

29.2V15Ah/29.2V30Ah
